Coleman® Model 220C
Born in August 1945


Do not modify a lantern for any reason. If you do, make sure you understand the word liability because you're going to hurt someone.





Coleman® Double Mantle Lantern
Production Information

Charting which years any particular Coleman® lantern was made is a never-ending process. The company began marking lanterns with date information in the mid-1920s. To learn how they have been marked over the years, please refer to our How-to section on dating appliances.

The information in these chapters has been gathered from multiple sources over a very long period of time. Nothing is guaranteed, but much of it is confirmed. Dates may be slightly different than those found on other websites.

This list only includes US made lanterns.

If you have an original lantern that is stamped with a date outside of the date ranges listed, or if it remains in the original box with date information on it, we'd like to hear from you. Please email a description and photo to info@oldtowncoleman.com.

A red lantern in the "Photo" column indicates a photo is available.

Model Size Fount Ventilator Photo Years Remarks
L   Nickel Plate Nickel Plate
1914-1925 Arc Lantern "316"
AL   Nickel Plate Nickel Plate
1914-1920 Air-o-Lantern "319"
E20   Silver Paint Nickel Plate
1923-1930 Poultry Lantern

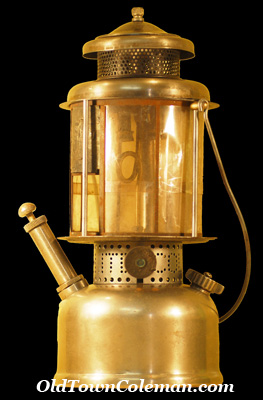

2LQ427   Nickel Plate Nickel Plate
Photo Available
1924-1926 Raised pump

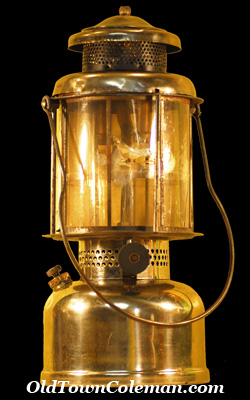

QL327   Nickel Plate Nickel Plate
Photo Available
1916-1920 "Air-o-Lantern Model QL"
L327   Nickel Plate Nickel Plate   1920-1924 "Quicklite"
L427   Nickel Plate Green Porcelain   1929-1936

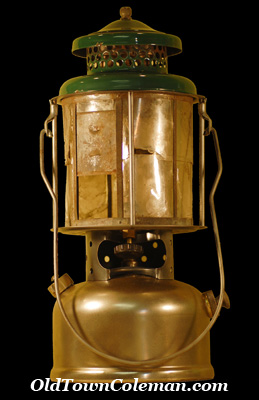

L220 300cp Nickel Plate Green Porcelain
Photo Available
1928-1930 "Slant" 220

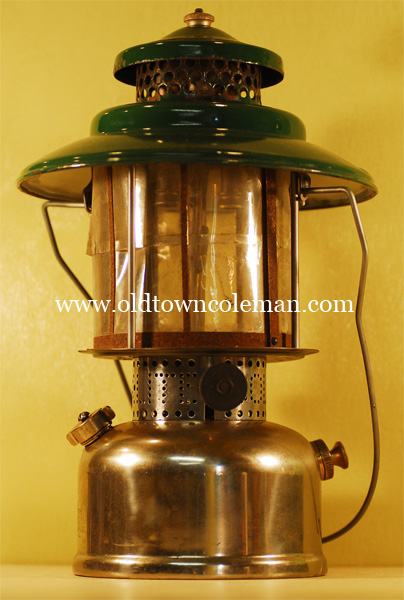

L227   Nickel Plate Green Porcelain
Photo Available
1927-1932 Quicklite w/Large ventilator

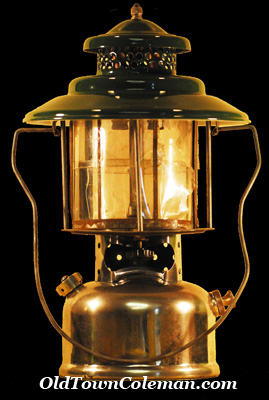

L228 300cp Nickel Plate Green Porcelain
Photo Available
1928-1930 "Slant" 228

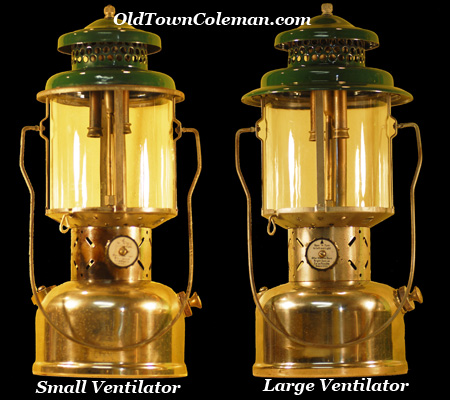

220B   Nickel Plate Green Porcelain
Photo Available
1930-1942 Two versions (Ventilator)
220B   Green Paint Green Porcelain
1942

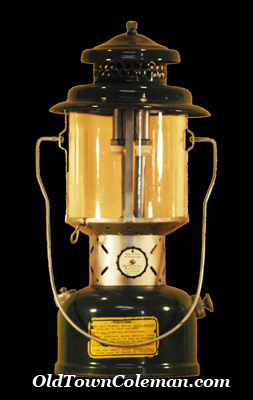

220BX   Green Paint Green Porcelain
Photo Available
1943
220C   Green Paint Green Porcelain
Photo Available
1944-1946

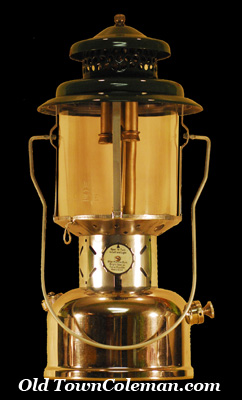

220D   Nickel Plate Green Porcelain
Photo Available
1947-1951

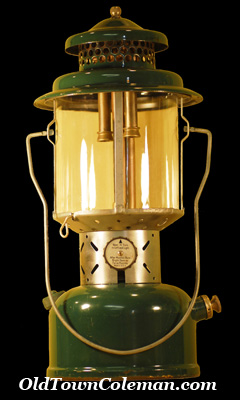

220D   Green Paint Green Porcelain
Photo Available
1951

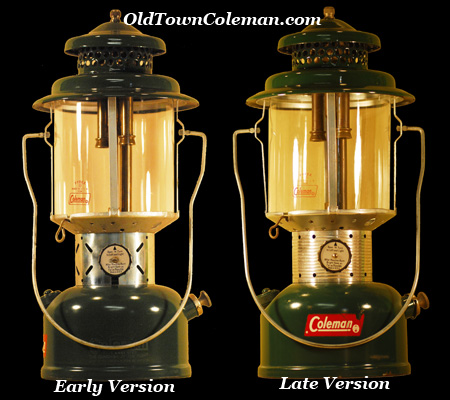

220E   Green Paint Green Porcelain
1952-1963 Two Versions (Fount/Rest)
220F   Green Paint Green Porcelain
Photo Available
1964-1973
220H   Green Paint Green Porcelain
1973-1975
220J   Green Paint Green Porcelain
Photo Available
1975-1979
220K   Green Paint Green Porcelain   1980-1983
228B   Nickel Plate Green Porcelain   1930-1942
228B   Green Paint Green Porcelain   1942

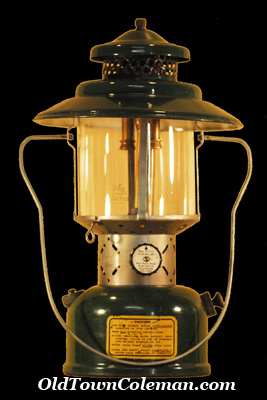

228C   Green Paint Green Porcelain
Photo Available
1944-1946

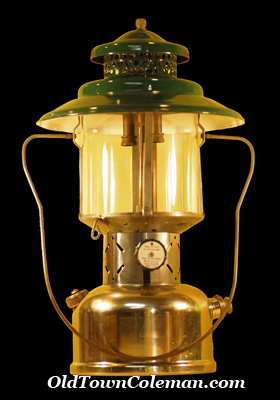

228D   Nickel Plate Green Porcelain
Photo Available
1947-1951
228D   Green Paint Green Porcelain
228E   Green Paint Green Porcelain   1952-1963 Two Versions (Fount/Rest)
228F   Green Paint Green Porcelain
Photo Available
1964-1973
228H   Green Paint Green Porcelain   1973-1975
228J   Green Paint Green Porcelain   1975-1979
231   Nickel Plate Red Porcelain   1975-1976 Kerosene
235 300cp Seafoam Paint Seafoam Porcelain   1936-1938 Kerosene

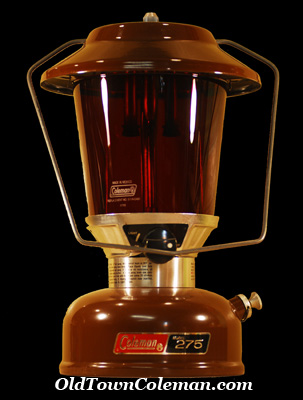

275   Brown Paint Brown Porcelain
Photo Available
1975-1979

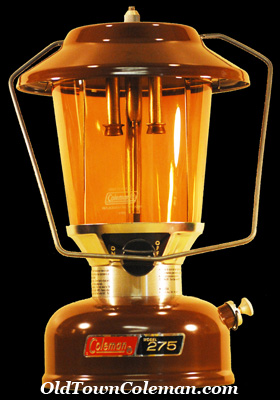

275A   Brown Paint Brown Porcelain
Photo Available
1980-1982
285(A) 220cp Silver Paint Black Porcelain   1989-2011

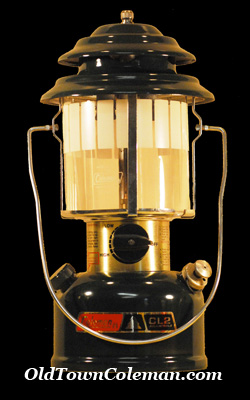

288(A) 220cp Green Paint Green Porcelain
Photo Available
1984-1999
290(A) 300cp Green, Black or Red Paint Green, Black or Red Porcelain   1984-1999
295(A) 300cp Silver Paint Black Porcelain   1991-2020
